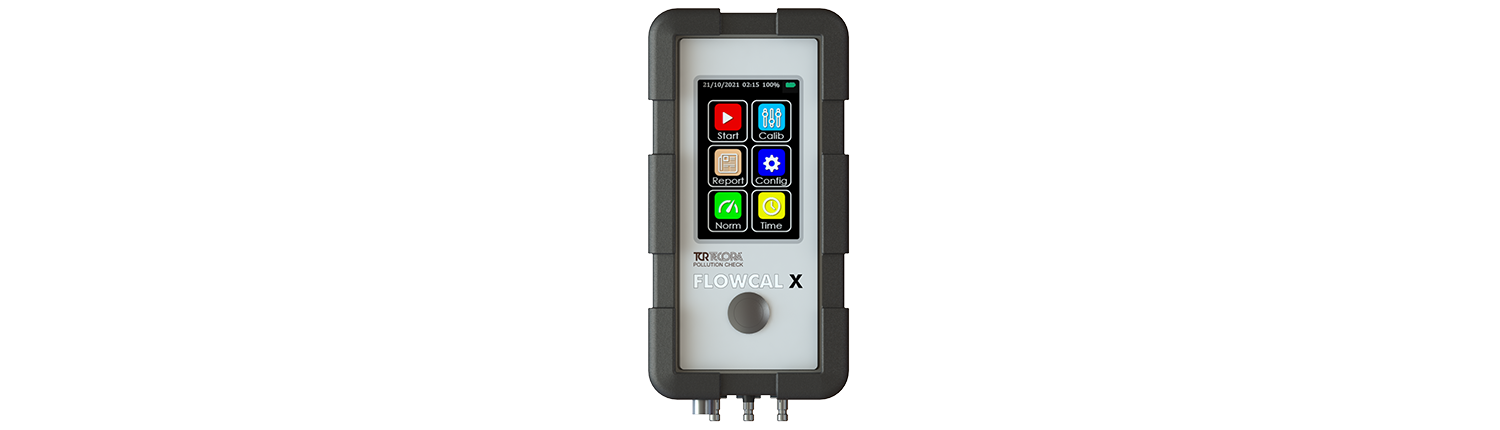

Flowcal X

Multifunction Calibrator

Outdoor Air Quality TCR Tecora

Flowcal X: more than a simple flow calibrator.

Leaf Leaf

Simple and accurate checks with a single instrument.
Flowcal X allows precise verification of flow, pressure, and temperature—key parameters typically monitored by samplers.

Its versatility makes it the ideal solution for verification procedures required by quality management systems.

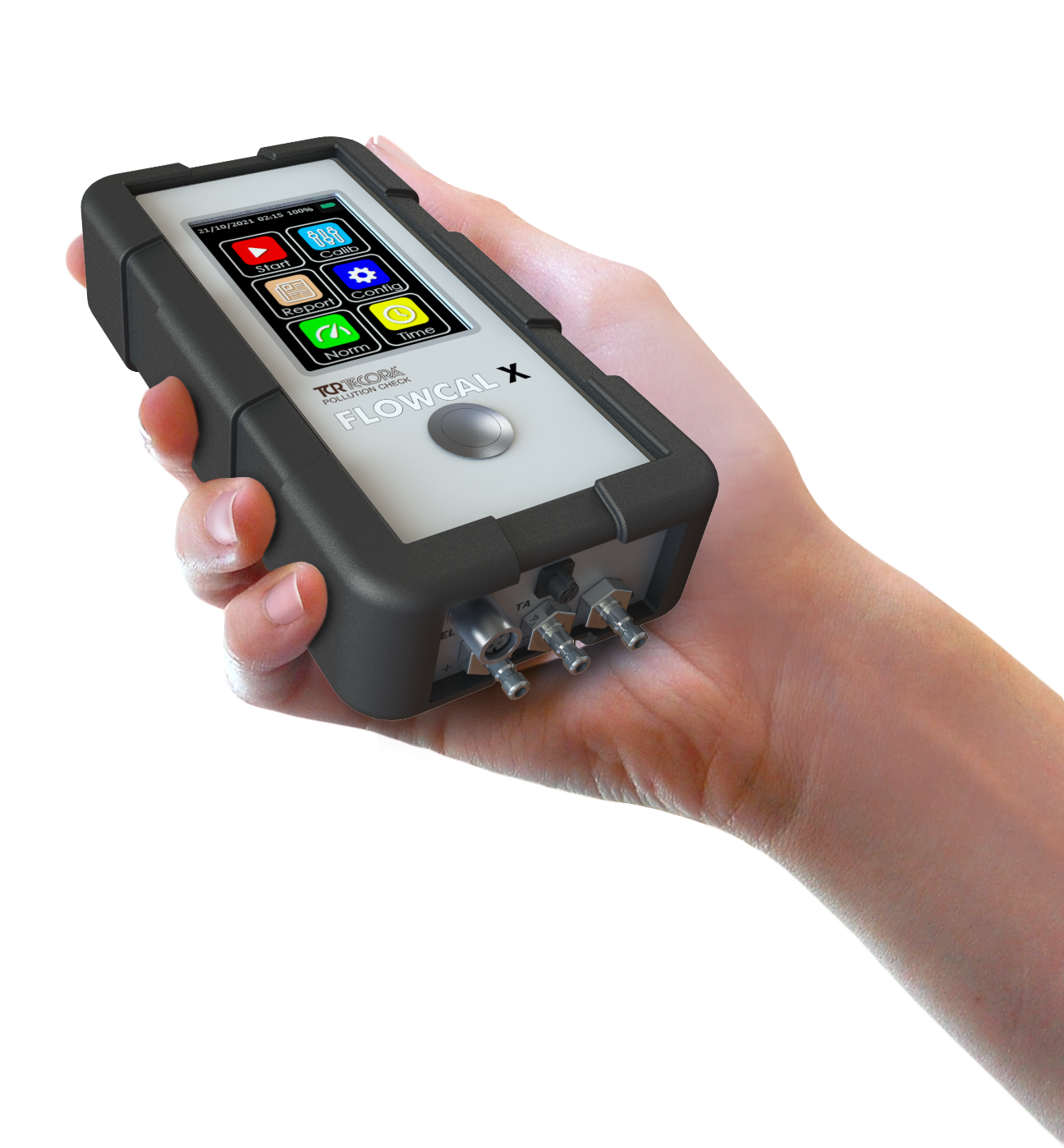

  • LIGHTWEIGHT AND COMPACT DESIGN

  • SIMPLE AND INTUITIVE DATA DOWNLOAD

  • TXT FORMAT

  • CELL CONNECTIONS COMPATIBLE WITH LVS AND US EPA

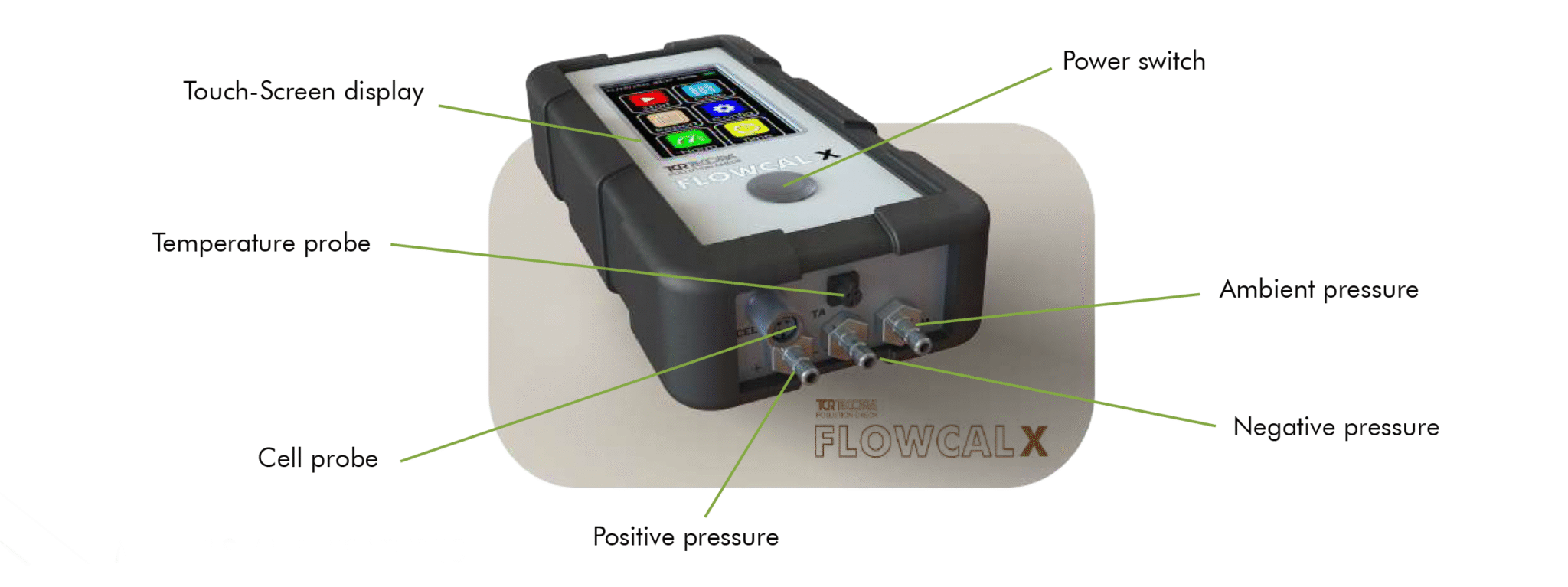

TCR Tecora_Flowcal X

Measurement Traceability

Flowcal X ensures operations in full compliance with the highest quality standards. It automatically generates comprehensive calibration reports, including information such as the measurement cell used, calibration due dates, detected deviations, environmental conditions during testing, date and time of measurement, and more.

Thanks to the Micro-USB port, reports can be easily downloaded, eliminating the need for paper forms, outdated serial ports, or converters. Data transfer is quick and straightforward—just connect the instrument to a computer.

Great care has been taken in sensor calibration and measurement accuracy. Each sensor is factory-calibrated following a strict, traceable procedure in accordance with national metrological standards. A test and calibration certificate is supplied with every unit.

Flowrate cells Flowcal X

Flow measurement cells are equipped with an internal microchip that stores all calibration and adjustment data. Usage is extremely simple: just connect the cell and power on the device. The system automatically recognizes the cell, making it ready for measurement.

Each cell also includes an ambient temperature sensor, shielded from solar radiation for reliable field use. The temperature sensor’s calibration is stored directly on the chip, ensuring consistent and accurate readings.

TCR Tecora_Flowcal X

The cell connections are fully compatible with European LVS and US EPA standards for sampling heads.
Flow values can be displayed under both actual conditions and standard conditions.

Finally, Flowcal X is fully compatible with all legacy TCR Tecora® flow cells, ensuring continuity and long-term usability.

Main Features

  • REFERENCE CALIBRATOR to measure: Flow; Absolute Pressure; Differential Pressure; Temperature (optional);

  • FLOW CALIBRATOR with Interchangeable measurement cells Flowcell Air, available in different ranges;

  • High precision PRESSURE CALIBRATOR, with thermal drift compensation device;

  • Creation of CALIBRATION REPORT;

  • Creation of MEASUREMENT LOG directly on the USB Key;

  • Powered by a rechargeable LI-ION battery;

  • LONG BATTERY LIFE;

  • Available with ISO 17025 accredited laboratory certificate.

TCR Tecora_Flowcal X

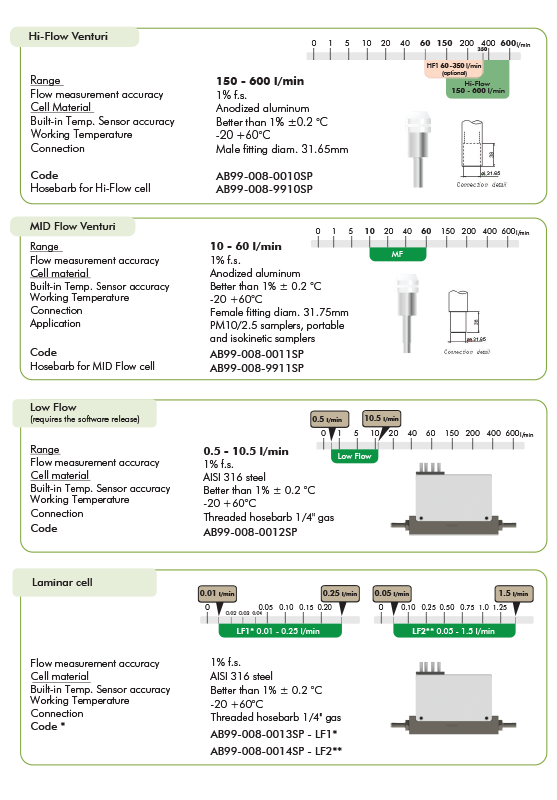

Technical Specifications

TCR Tecora_Flowcal X_Spec

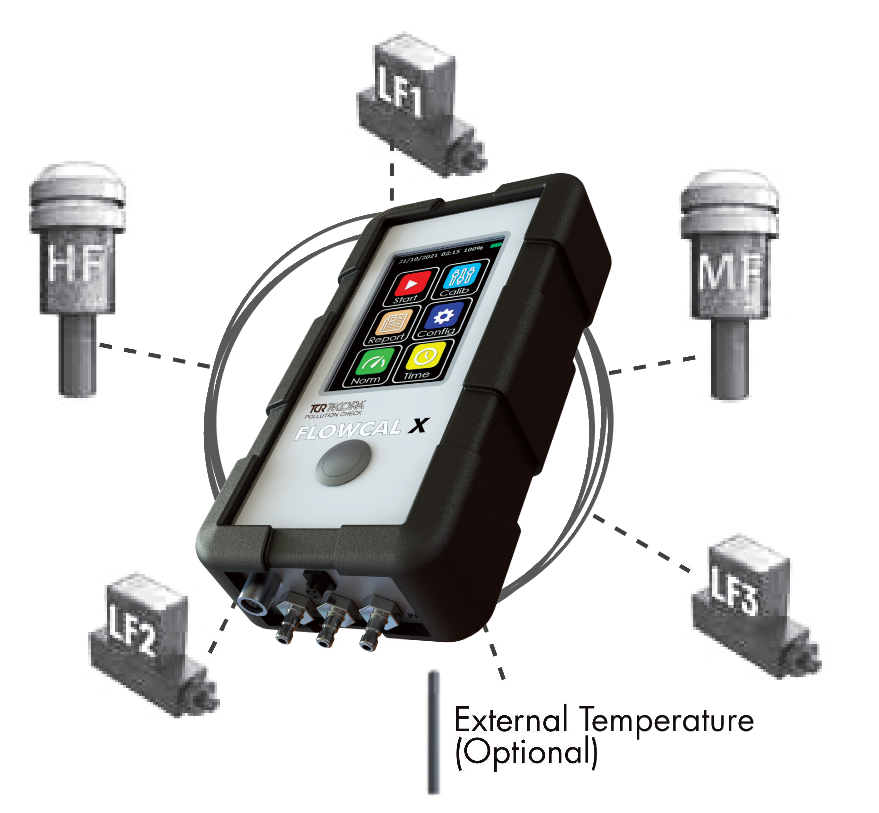

TCR Tecora_Flowcal X_3

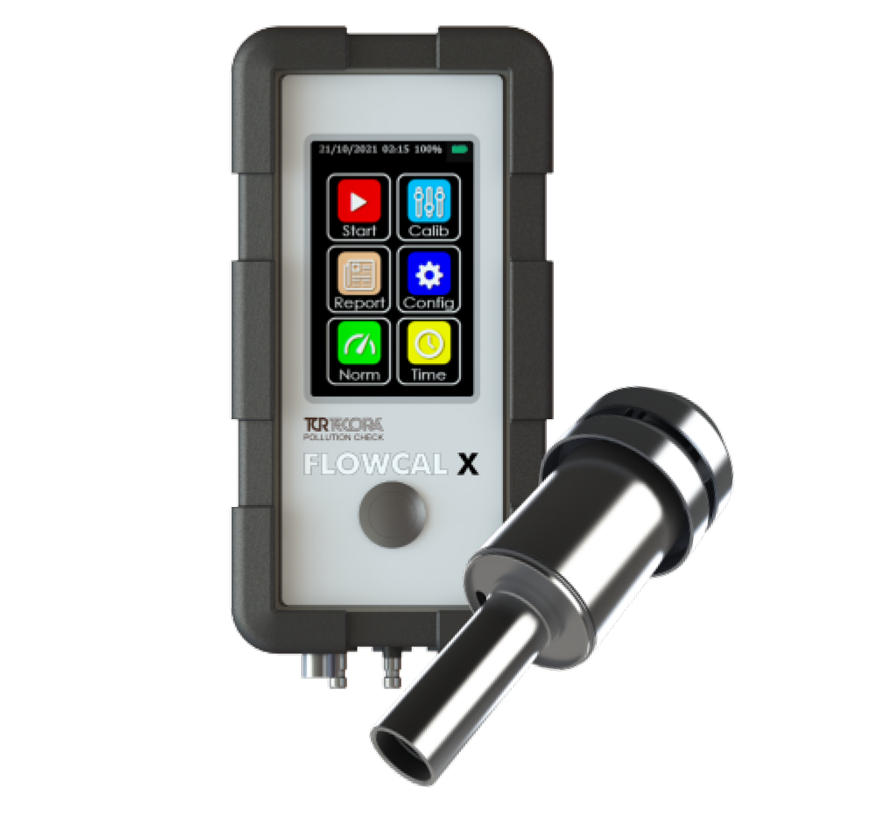

Flowcal X - Multifunction Calibrator 4

Download the FLOWCAL X Data Sheet now
