Bravo Asbesto

Asbesto Air Sampler

Outdoor Air Quality TCR Tecora
1
2
3
4
5
6
7
8

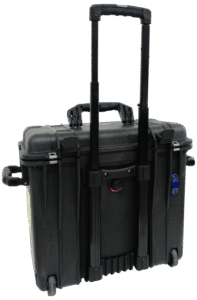

Bravo Asbesto Sampler
1

Colour Touch Keyboard

2

Carrying handle

3

Telescopic pole

4

Anemometer

5

Preloaded Filter Cassettes

6

Lid for instrument security

7

Carrying handle

8

Flowmeter

Asbestos Sampler for Air Quality

Bravo Asbesto
Bravo Asbesto Sampler 1

Compliant with:

ISO 10312-2019,
AFNOR X46-010,
OSHA 1910.1001 App B,
EPA 40 CFR
Appendix A to Subpart E of Port 763

BRAVO ASBESTO is a portable constant adjustable flow sampler dedicated to the sampling of airborne asbestos fibers of TCR Tecora.

Current legislation provides that in relation to work activities that may entail, for workers exposure to asbestos, such as maintenance, removal of asbestos or asbestos-containing materials, disposal and treatment of related waste, remediation of areas concerned, the employer shall carry out periodically measure the concentration of asbestos fibers in the air of workplace.

BRAVO ASBESTO, thanks to the possibility of adjusting the sampling flow over a wide range, can be used for the sampling of asbestos fibers for subsequent analysis by SEM and for sampling total fibers for subsequent analysis by MOCF, in accordance with AFNOR, ISO, OSHA and US EPA standard.

It is possible to equip the instrument with an optional internal battery, which allows sampling even in the absence of power supply, and a Docking Station to control battery charge and operating parameters even remotely.

Bravo Asbesto

Main Characteristics

  • Flow range: from 1 to 25 l/min
  • Flow range (optional): from 0,5 to 55 l/min
  • Measure resolution on-screen: 0,1 l
  • Pump type: single head diaphragm
  • Volumetric counter accuracy minor of ±1%
  • Power supply: 230 Vac – 12 Vdc (optional internal battery)
  • Dimensions*: 47h x 44l x 28w
  • Weight: 12 Kg (without battery)
  • Protection grade: IP65

Download the Data Sheet of the New Bravo Asbesto
